Features

CPU: Intel® Atom™ E3800 Processor (Bay Trail)
CPU Choice: Dual Core E3827, Quad Core E3845
Chipset: Intel® SoC
RAM: Up to 8GB DDR3L 1333MHz
 Frontpanal-Connectors
LAN: 2x GbLAN Intel i210
Graphic: DVI 1920x1080 @ 60Hz 24bpp; Supports VGA/CRT
USB: USB 4x 2.0
COM: No external COM
PSU Input: PSU onboard wide range DC input
 Internal-Connectors (SBC onboard)
LAN: 1x GbLAN Intel i210
Graphic: 1x DVI/HDMI/DP via I-PEX Option
USB: 4x USB2.0 via FCI Option; 1x USB3.0 via I-PEX Option
Storage: 2x SATA (3Gb/s) (RAID 0/1/5/10)
Storage: No additional Storage
Serial COM: 1x COM RS232 via FCI Option
Audio: 1x HD Audio via FCI Option
I/O Expansion: No additional I/O Expansion
PCIe Expansion: 1x 2x40 pin PCIe (1x4/4x1)
GPIO: 1x GPIO (8) via FCI Option
TPM: No additional TPM
Temp Std.:  -20° to +70°C
Temp Ext.:  -40° to +85°C (option upon request)
PSU DC Input: Single Voltage, wide range 20-30V (24V Nominal) Optional 7-36V
PSU Features: S-UPS (option upon request)
SBC Formfactor 3.5"-SBC
Dimension: 102mm x 147mm (4" x 5.8")
Weight: 165gr

Description

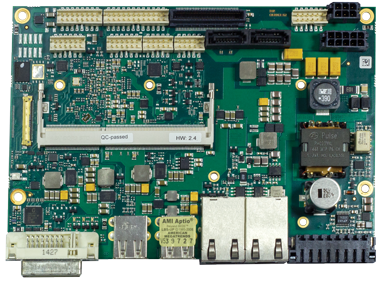

The ADLE3800HD is based on Intel’s first System-on-Chip (SoC) E3800 Atom product family which is built using Intel’s 22nm 3D Tri-gate process. It offers vastly superior compute performance and energy efficiency and Intel’s 7th generation graphics engine for stunning graphics performance. Improved power management capabilities result in standby power measured in milliwatts with days of standby time.

The ADLE3800HD graphics engine is capable of decoding 10 or more streams of 1080p video, has integrated hardware acceleration for video decode of H.264, MVC, VPG8, VC1/WMV9 and others standards. It also supports DirectX 11, Open GL 4.0, full HD video playback, and a maximum resolution of 2560 x 1600 @ 60Hz and dualdisplay support.

The ADLE3800HD is ideal for rugged, extended temperature embedded systems with a thermal junction temperature (Tj) ranging from –40C to 85C. It’s well suited for extreme environments such as industrial control and automation and in-vehicle communication and infotainment systems for commercial transportation systems. It’s superior graphics also make it ideal for rugged mobile computing, digital signage with secure content delivery, portable medical devices and interactive kiosks, vending, ATM and point-of-sale (POS) terminals.
Optionally the ADLE3800HD can be equipped with a plug-in SUPS, which can keep the board alive for a few seconds in case of power failure or voltage fluctuation.

Please contact your sales representative for more information
sales@adl-europe.com

Ordering Information

Item Codes Part# Description
CPU-Boards
ADLE3800HD-E3827 294802 4th Gen Intel ATOM DualCore CPU (2x 1.75GHz)
ADLE3800HD-E3845 294800 4th Gen Intel ATOM QuadCore CPU (4x 1.91GHz)
Memories
DDR3L-DRAM4096-(V) 997600 4GB DDR3L DRAM 1600MHZ (V)
DDR3L-DRAM8192-(V) 997601 8GB DDR3L DRAM 1600MHZ (V)
DDR3L-DRAM4096-EX-(V) 997602 4GB DDR3L DRAM-EX 1600MHZ (V) -40°C TO +85°C
DDR3L-DRAM8192-EX-(V) 997604 8GB DDR3L DRAM-EX 1600MHZ (V) -40°C TO +85°C
Thermal solutions
ADLE3800HD-SPREADER 294864M heat spreader for chassis mount ADLE3800HD
ADL35-BBHS 294152 large heat sink for ADLXXXHD CPU's
ADL35-LFAN 294154 large fan for ADL35-BBHS
ADL35-SOSET 294156 stand off set for ADL35-BBHS & LFAN
CS-100 290010 10"x10" thermal chassis simulator for development
Options
ADL-ET 290000 Extended Temperature Screening (–40C to +85C)
UNDERFILL 807707 BGA underfill req’d for <1nm BGA solderballs w/ Ext Temp
COATING 807706 Conformal Coating
UNDERFILL/BONDING/COATING 807709 Underfilling, Bonding, and Conformal Coating
