Features
| CPU: | Intel® Core™ Celeron/I5/I7 Processor (Haswell) |
| CPU Choice: | Celeron 2000E, i5-4400E, i7-4700EQ |
| Chipset: | Intel® QM87 (Lynx Point-M) |
| onboard Connectors | |
| RAM: | Up to 8GB DDR3L 1600MHz |
| LAN: | 2x GbLAN Intel i210/i218 |
| Graphic: | VGA/DVI/HDMI/DP/eDP |
| USB: | 8x USB 2.0, 2x USB 3.0 plus 2x USB2.0 via PCIe/104 |
| COM: | 2x COM RS232 |
| ISA: | no additional PC/104 |
| PCI: | no additional PC/104-plus, PCI-104 |
| PCI-Express: | 1x PCIe/104 (PCI Express) |
| Storage: | 4x SATA (6Gb/s) (RAID 0/1/5/10) |
| Storage: | 1x mSATA Socket (CPU-Bottom) |
| PCIe Expansion: | PCIe mini Card (shared with mSATA) |
| Audio: | 1x HD Audio (DP/HDMI), 1x HD Audia via FCI Connector |
| GPIO: | 1x GPIO (16) via FCI Option |
| TPM: | 1x TPM 1.2 |
| Temp Std.: | -20° to +70°C |
| Temp Ext.: | -40° to +85°C (option upon request) |
| PSU DC Input: | ATX requierment 5V, 5VSB (12V optional for PCIe or FAN) |
| PCIe/104 Typ: | Typ 1 |
| SBC Formfactor | PCIe/104 |
| Dimension: | 115mm x 96mm (4.5" x 3.8") |
| Weight: | 95gr |
Description

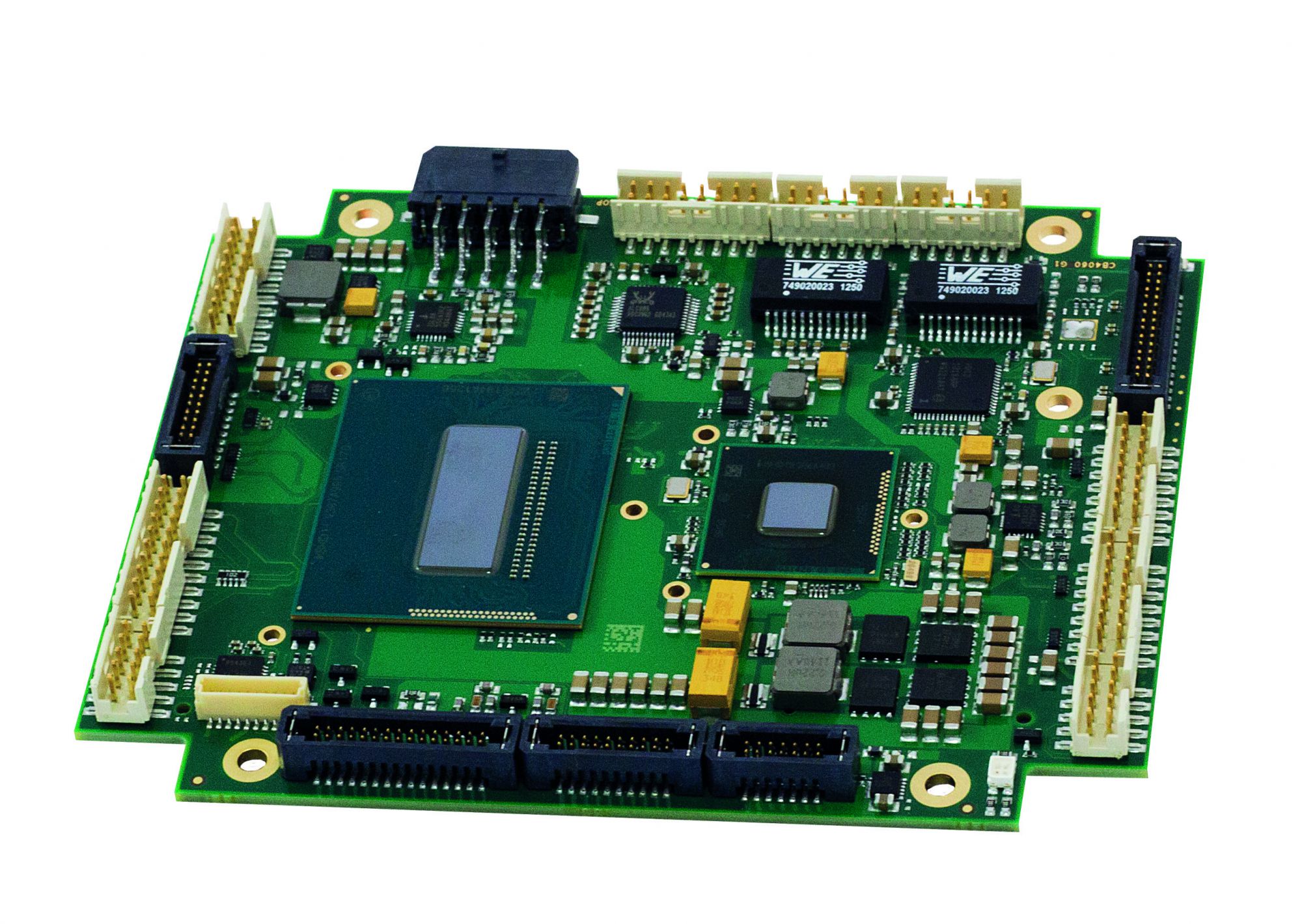

The ADLQM87PC delivers the industry’s highest GIPS per in2 and the most denselypacked comprehensive set of features. The ADLQM87PC’s 17 in2 footprint features 4th generation Intel Core processors with Intel 8-series QM87 PCH chipset, onboard Mini PCIe/mSATA socket for on-board WiFi, GPS, bootable flash storage, a Trusted Platform Module (TPM v1.2), 2xUSB 3.0, 1.35V , 4x SATA 6 Gb/s, 2x GLAN, DisplayPort, HDMI/DVI, VGA, etc…all with a smaller footprint, height and greater temperature range and ruggedness compared to a basic COM-Express module.
The ADLQM87PC features a vastly improved Intel HD4600 graphics engine with 2x the performance of the previous 2nd generation Intel Core graphics. It is ideal for spaceconstrained, rugged, or extended temperature applications where multi-core processor performance is critical. It brings unparalleled performance to countless applications such as radar and sonar processing, image signal processing, tactical command and control, surveillance and reconnaissance, transportation and railway.
ADL Embedded Solutions offers for ADLQM87PC 3D CAD modeling support and full system design services which include custom chassis design, thermal solution design and system integration services.
Please contact your sales representative for more information
sales@adl-europe.com
Ordering Information
| Item Codes | Part# | Description |
|---|---|---|
| CPU-Boards | ||
| ADLQM87PC-4700EQ | 292750 | 4th Gen Intel i7 Quadcore CPU(4x 2.4GHz, max. Turbo 3.4GHz) |
| ADLQM87PC-4400E | 292752 | 4th Gen Intel i5 Dualcore CPU(2x 2.7GHz, max. Turbo 3,7GHz) |
| ADLQM87PC-2000E | 292756 | Intel Celeron 2000E CPU (2.2GHZ) |
| Memories | ||
| DDR3L-DRAM4096-(V) | 997600 | DDR3L-1333/1600 MHz 4GB Standard Temperature |
| DDR3L-DRAM8192-(V) | 997601 | DDR3L-1333/1600 MHz 8GB Standard Temperature |
| DDR3L-DRAM4096-EX-(V) | 997602 | DDR3L-1333/1600 MHz 4GB Extended Temperature |
| DDR3L-DRAM8192-EX-(V) | 997604 | DDR3L-1333/1600 MHz 8GB Extended Temperature |
| Thermal solutions | ||
| ADLQM87PC-FANSINK | 292762M-SET | heat sink (cu enhanced) and fan assembly for ADLQM87PC dual/quad |
| SPREADER FANSINK DUAL | 292416M-SET | Heatsink with dual fan assembly for ADLQM67/87PC to be mounted on top of ADL SP0600/SP1000 typical bench- & development use only! |
| ADLQM87PC-SP0600 | 292760M | 0.6" heat spreader (cu enhanced) for ADLQM87PC |
| ADLQM87PC-SP1000 | 292761M | 1.0" heat spreader (cu enhanced) for ADLQM87PC |
| CS-100 | 290010 | 10"x10" thermal chassis simulator for development |
| Cables & Accessoires | ||
| ADLQM87PC-CK | 292770 | Development cable kit for ADLQM87PC (W/O SATA,GPIO,USB3,HDMI, DVI,DISPLAY PORT) |
| STANDOFF-MSS | 293406 | standoff 0.6" (15,24mm) PC/104 M3, QTY 1 precision milled |
| STANDOFF-1"M3 | 293436 | standoff 1.0" (25,40 mm) PC/104 M3, QTY 1 precision |
| ADL-HDSATA | 100-9915 | Cable 4x SATA high density |
| ADL-HDVGA | 100-9920 | Cable VGA CON high density |
| ADL-USB3-HD | 100-9925 | Cable 2x USB 3.0 high density |
| ADL-DVI-HD | 100-9935 | Cable DVI-D/F high density |
| ADL-DP-HD | 100-9940 | Cable Display port high density |
| mSATA/PCI Express Mini Card mounting option | 46199042 | Set for mechanical mounting of mSATA or PCI Express Mini Card-Modul on ADL CPU-Board |
| Options | ||
| ADL-ET | 290000 | Extended Temperature Screening (–40C to +85C) |
| UNDERFILL | 807707 | BGA underfill req’d for <1nm BGA solderballs w/ Ext Temp |
| COATING | 807706 | Conformal Coating |
| UNDERFILL/BONDING/COATING | 807709 | Underfilling, Bonding, and Conformal Coating |
