Features

CPU: Intel® Core™ Celeron/I5/I7 Processor (Haswell)
CPU Choice: Celeron 2000E, i5-4400E, i7-4700EQ
Chipset: Intel® QM87 Lynx Point-M
RAM: Up to 8GB DDR3L 1600MHz

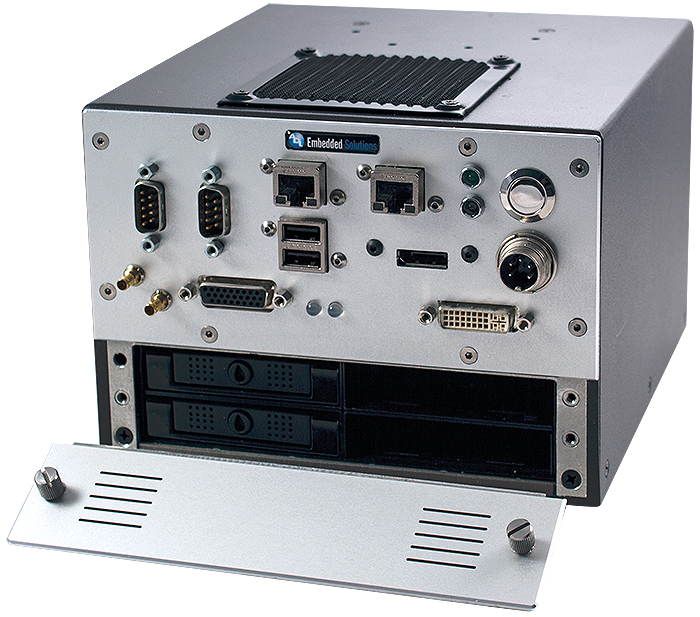

Frontpanal-Connectors Frontpanal-Connectors
LAN: 2x GbLAN Intel i210/i217
Graphic: VGA 1x
USB: USB 2x 2.0
COM: 2x COM
PSU Input: PSU internal wide range DC input
Internal-Connectors (SBC onboard) Internal-Connectors (SBC onboard)
LAN: No additional LAN
Graphic: Additional Graphic upon request
USB: Additional USB upon request
Storage: Max. 4x 2.5" SATA SSD/HDD (hotswap/hotplug)
Storage: 1x mSATA 64GB Socket (CPU-Bottom)
Serial COM: No additional COM
Audio: Audio Optional (only with DP/HDMI)
I/O Expansion: 2 Channel Camera Link PCIe/104 X16
I/O Expansion: 2 Channel CoaXpress PCIe/104 X16
PCIe Expansion: 4 Lanes PCIe X1 (PCIe/104)
GPIO: Additional GPIO upon request
Temp Std.:  -20° to +70°C
Temp Ext.:  -40° to +85°C (option upon request)
PSU DC Input: Single Voltage, wide range, depance on PSU Choice
PSU Features: Optional features S-UPS, Isolation
Chassis-Features Chassis-Features
Certificate: designd to meet CE
Design approval designd to meet EN50155 (Railway Tolerance)
Mounting:  Mounting Option upon request
SBC Formfactor: PCIe/104
Chassi Dimensions: TBD.
Weight: TBD.

Description

ADL Vision Solutions:

From factory floor machine vision systems for automation, to robotics or commercial drone applications for science and agriculture and military surveillance Machine Vision is everywhere! ADL Embedded Solutions is well versed in all aspects of embedded vision design… high-speed framegrabbers, storage, processing, system design and thermal management.Machine Vision is Everywhere! ADL Embedded Solutions, has been putting vision solutions together for customers for many years. This includes systems using NTSC/PAL, SDI, and HD-SDI to high-performance framegrabbers using the latest image capture interfaces like CoaXPress and Cameralink technologies.

APPLICATIONS

  • Machine Vision for Factory Automation
  • Commercial Drone Payload Computers for Hyperspectral, Multispectral, SWIR or LiDAR
  • Traffic Surveillance
  • Security Monitoring and Control
  • Unmanned Systems - High Resolution Image/Video Capture
  • High-Speed Automated Optical Inspection
  • Very High-Resolution Line-Scan Image Acquisition
  • Military and Defense ISR
  • High Frame-Rate Motion Analysis and Recording



Ordering Information

Item Codes Part# Description
Base
ADLVIS-1700-CL tbd. ADLVIS-1700 IPC with 2 Camera Link Ports
ADLVIS-1700-CXP tbd. ADLVIS-1700 IPC with 2 CoaXpress Ports
CABELS & ACCESSOIRES
ADLVIS-1700-KIT tbd. Cable-Kit Option
Driver   Click here
ADLSST   Not yet available
