ADL Modular Systems Overview
This is not a single housing.
The ADL MES series is a component of a fully customized IPC (includes ADL CPU board etc.).

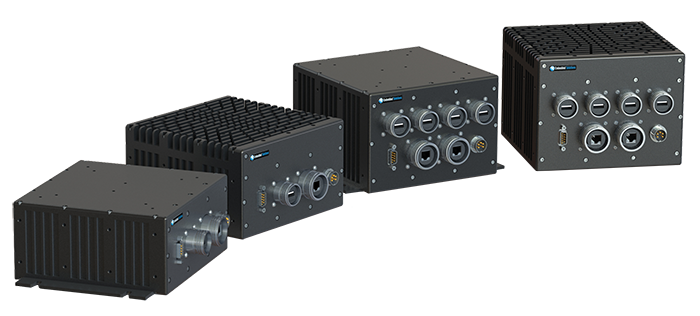

The rugged ADLMES9200 IP67 chassis is a successor to ADL’s popular ADLMES8200 IP65 chassis system. Improvements include lower weight, lower cost, quick and reliable IP67 integration for rugged military and industrial applications. Design features for military / defense system include MIL-STD 810 tolerance and MIL-STD 461/704/1275 compliance capability.
The ADLMES9200 is compatible with all ADL’s full range of Intel-based PC/104 and 3.5″ SBC’s which range from low-power ATOM to the latest Intel Core i5/i7 processors. Power supply options include ADL’s range of long-life (MTBF>500,000 hrs) with options for MIL-STD 461/704/1275 compliant filtering.
The uni-body design, with minimal, reliable EMC-compliant gasketing makes for better IP67 Ingress protection as well as assembly. Full design and development services are available for chassis customization, cabling, integration and modeling support.
Applications
Rugged Military / Defense: Ground Vehicles, Mission / Payload Computing, Secure Communications, SWaP-constrained systems for mobile, airborne and vehicle
Rugged Industrial: Oil and Gas, Road Construction and Inspection, Mining, Agriculture
ADLMES9200 High-IP (67+) Rugged Modular Enclosure System
This is not a single housing.
The ADL MES series is a component of a fully customized IPC (includes ADL CPU board etc.).
The ADLMES9200 is a successor to ADL’s popular MIL-COTS IP65 ADLMES8200 chassis system. Improvements include lower weight, lower cost, quick and reliable IP67 integration as well as design MIL-COTS features such as MIL-STD 810 ruggedness and MIL-STD 461/704/1275 compliance capability. It is compatible with all of ADL’s PC/104 and 3.5” SBCs and power supplies.
ADLMES8200 High-IP (60+) Rugged Modular Enclosure System
The ADLMES 8200 is a Highly Configurable, Modular Enclosure System Aimed at Quick-Turn Delivery of Rugged and Extended Temperature Enclosures for a Variety of Applications.
ADLRHD-1650 Removable Hard Drive (MIL-STD 810) for ADLMES
The ADLRHD-1650 has been developed for military and industrial use scenarios that can benefit from MIL-STD 810 shock and vibration durability but also requires frequent SATA drive removal or swapping for data retrieval, maintenance, security and other purposes.
